7.5 - 22 kVA

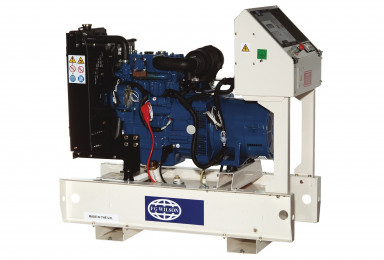

This range of FG Wilson diesel generator set is typically used for power in offices, shops and supermarkets, and for general domestic purposes.
All models are tested within standard reference conditions 25°C (77°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 30% relative humidity.
These diesel generator set models are compliant with EU Stage II Emission Legislation.
General attributes:
- Perkins engine
- Leroy Somers alternators
- Manufactured in the UK
- Built to last
Mouse Over to Zoom
Summary of Variations
| Fuel | ||||||||
|---|---|---|---|---|---|---|---|---|
| Phase | Model No. | Engine | kVA | kW | Amps | Capacity (L) | Consumption * | |
| Single | P7.5-2S | Perkins | 7.5 | 7.5 | 31.3 | 45 | 2.5 |
 |
| P11E2S | Perkins | 11 | 11 | 45.8 | 45 | 3.6 |
|
|
| P14-4S | Perkins | 14 | 14 | 58.3 | 45 | 4.4 |
|
|
| P16.5-4S | Perkins | 16.5 | 16.5 | 68.8 | 45 | 4.9 |
|
|
| Three | P9.5-2 | Perkins | 9.4 | 7.5 | 13.1 | 45 | 2.5 |
|
| P13.5E3 | Perkins | 13.8 | 11 | 19.2 | 45 | 3.6 |
|
|
| P18-4 | Perkins | 18 | 14.4 | 25 | 45 | 4.4 |
|
|
| P22-4 | Perkins | 22 | 17.6 | 30.6 | 45 | 5.3 |
|
|
* l/hr continuous at 100% load
The right level of power and solution will depend on your specific requirements, thats why we encourage you to contact us to discuss your needs.
Figures in the summary table are subject to change without notice so please use this table as a guide only.
Generators require control panels to coordinate in automatic mains failure applications and in conjunction with transfer panels. Click here for more information
Generators are vulnerable to malfunction if left out in the elements, generator enclosures are designed to protect the generator. Click here for more information
Generators are vulnerable to malfunction if left out in the elements, generator enclosures are designed to protect the generator. Click here for more information
